Metallic Pall Ring

1679908968

National Service Hotline：0799-3411238/3413877

Product introduction

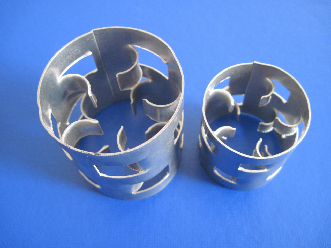

Metallic pall ring  are the up-grade product to Rasching ring .It opens two row of window on its wall, with 5 tongue lobes bend to the ring and point to the center of the ring. Its processing capacity can increase over 50% compare to Rasching Ring .The metallic pall ring is made of stainless steel and carbon steel. It is used in the devices for separation , absorption and desorption ;  Ammonia decarbonization;desulfurization system; Ethylbenzene separation; Isooctane toluene separation etc.

Material: titanium alloy,Carbon steel, Stainless steel304,304L,410,316 and 316L etc.

Technical Parameter:

Size(mm)

Diameter*Height*Thickness(mm)

Surface Area(m2/m3)

Porosity(%)

Pile up Qty(n/m3)

Pile up Weight(Kg/m3)

Dry packing factor(m-1)

Φ25

25*25*0.5

219

95

51940

393

255

Φ38

38*38*0.6

146

96

15180

318

165

Φ50

50*50*0.8

109

96

6500

314

124

Φ76

76*76*1.2

71

96

1830

308

81

?
